Videology USB Flash Megapixel Color Box Camera
Videology Product Solution

Videology USB Flash Megapixel Color Box Camera

Choose the configuration, options and quantity that fit your project, then add the selected details to your quote.

Videology Vendor
24C7.38USB-F Item number
Choose Options & Add to Quote View Brochure
Configuration

Choose your options

Select the available configuration details, options and quantity. Your selections will be included with the quote request.

DISCONTINUED
Product Highlights
Product Features
  • Synchronized USB powered LED flash for consistent high quality images in any environment
  • 1.3 megapixel progressive scan sensor
  • >12.5fps at 720p high definition uncompressed resolution
  • Still image capture with streaming video
  • USB 2.0 bus provides power, camera and flash control
  • Complete SDK available
  • Compact industrial design

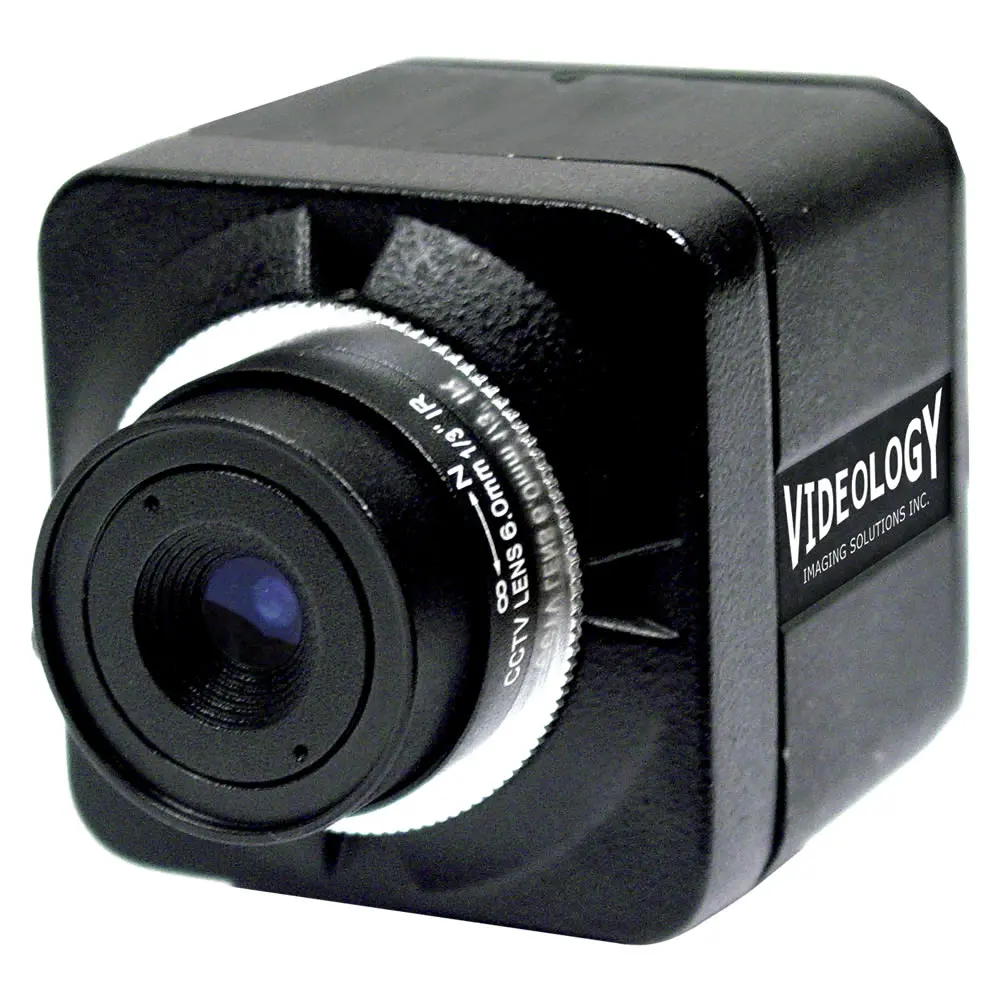

  • 24C7.38USB-F Shown with optional 6mm lens
Software
  • USB 2.0 viewer software and Microsoft Digitally Certified WDM Device Drivers for 32bit and 64bit Windows operating systems
  • DirectX/DirectShow compliant
  • TWAIN compliant
  • FIPS 201 compliance (in conjunction with appropriate software)
Technical details

Electrical  24C7.38USB-F

  • Sensor: 1/3” CMOS
  • Flash: High powered white LED
  • Viewer Display: 1280 x 1024 max
  • Max Frame Rates (Uncompressed)
    • 7.5 fps @ SXGA (1280 x 1024)
    • 12fps @ XGA (1024 x 768)
    • 25fps @ VGA (640 x 480)
  • Sensitivity:  < 2.0 Lux (50 IRE) F1.2, 3200K, lens transmission 80%, scene reflection 75%
  • Signal to Noise Ratio: >45 dB (AGC off)
  • Gamma: 0.45 default (1.0 via software)
  • Gain Control: Automatic 36 dB (AGC default) or Fixed options via software
  • Scan Mode: Progressive scan
  • Mirror Mode: Yes (horizontal/vertical)
  • Shutter Mode: Rolling shutter
  • Control Communication: Camera control via USB bus
  • Synchronization: Internal
  • Back Light Compensation: Default on (selectable via software)
  • White Balance Mode:
    • AWB auto white mode,
    • Fixed modes selectable via software
  • Contour Enhancement: Default on
  • Iris Control: Electronic shutter
  • Shutter Speeds:
    • Automatic
    • Fixed (NTSC) 1/12 to 1/100
    • Fixed (PAL) 1/15 to 1/120
  • Video Output: USB 2.0
  • Power Supply: 5VDC via USB 2.0 bus
  • Power Consumption: < 0.6W

Mechanical

  • Dimensions W x H x D (camera only):  50mm x 50mm x 49.6mm (without lens mount) (1.97” x 1.97” x 1.95”)
  • Weight: (w/fl  ash) 195g (0.43lb)
  • Cable: 6ft mini USB cable

Environmental

  • Operating Temperature -15o C ~ 55o C (5o F ~ 131o F)
  • Operating Humidity 20% up to 93%RH
  • Storage Temperature -25o C ~ + 70o C (-13o F ~ 158o F)
  • Storage Humidity Up to 98%RH
  • Lifetime MTBF > 150000

Software

  • Viewer (included) SFT-07019
    • WDM device drivers
    • DirectX/DirectShow compliant
    • TWAIN compliant (requires driver installation)
  • SDK (optional) SFT-07019-SDK: Complete software development kit and support for OEMs

Recommended System Requirements

  • Hardware
    • Pentium IV 2.3GHz +, 1GB hard drive,
    • Intel USB 2.0 Host controller
  • Software
    • Windows 7 32 bit and 64 bit
    • Windows Vista 32 bit and 64 bit
    • Windows XP Service pack 2 +,
    • DirectX 9.0c or above

Government Compliance

  • FIPS 201: In conjunction with appropriate software
  • Standards:  RoHS
