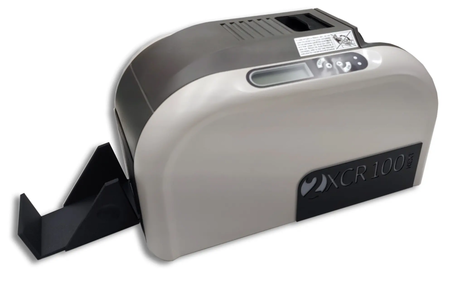

XCR100 2.0 ID Card Printer

The 2XCR100next personalizes oversized badges in the proven CR100 format (2.63" x 3.88"). The device delivers high speed in a compact footprint, producing up to 180 full-color cards per hour. In monochrome, output increases to 1,400 cards per hour.

Preprinting the cards is recommended. By personalizing CR100 cards that already include a preprinted frame, you can create highly recognizable, professional large-format badges ideal for hospitals, event venues, security organizations, military installations, and other high-security environments.

The 2XCR100next supports multiple add-on modules that can be installed as needed. Available options include a duplex module for two-sided printing in a single pass, an Ethernet module for network operation, and encoding modules for contactless RFID technologies.

In addition to YMCKO and standard black monochrome ribbons, a wide range of other monochrome ribbon colors is available, providing flexibility for various project requirements.

The 2XCR100next is designed to quickly, efficiently, and cost-effectively produce professional and forgery-resistant oversized CR100 identity cards.

Technical specifications:

  • Printing Technology: Dye-Sublimation / Thermal Printing
  • Interface: USB 1.1 (compatible with USB 2.0)
  • Ribbons:
    • Full-color YMCKO for 400 cards
    • Monochrome ribbons for 2,000 prints each, available in Black (K), White, Blue, Red, Green, Silver, and Gold
  • Printing Resolution: 300 dpi
  • Printing Speed:
    • Full color (YMCKO): up to 180 cards per hour
    • Monochrome: up to 1,400 cards per hour
  • Card Size: CR100 – 98.5 x 67 mm (2.63 x 3.88 in.)
  • Card Thickness: 0.25 mm to 1.0 mm (10–40 mil)
  • Card Feeder: 100 cards (0.76 mm / 30 mil)
  • Output Hopper: 50 cards (0.76 mm / 30 mil)
  • Drivers: Windows 7–11, Mac OS 10.5–10.8, Linux
  • Encoding Options: Contactless (RFID) encoder: Mifare
  • Additional Options: Ethernet interface, Mini-PC for cloud connection, Duplex (Flipturn) Unit
  • Dimensions (Printer only): 197.8 mm (W) x 354 mm (L) x 204 mm (H), 7.79 in. x 13.94 in. x 8.03 in. (without feeder and output hopper)
  • Dimensions (Printer boxed): 290 mm (W) x 500 mm (L) x 300 mm (H), 11.42 in. x 19.69 in. x 11.81 in.
  • Weight: Printer: 4.6 kg / 10.15 lb (without options); Printer boxed: 6.3 kg / 13.89 lb (without options)
  • Warranty: 2 years

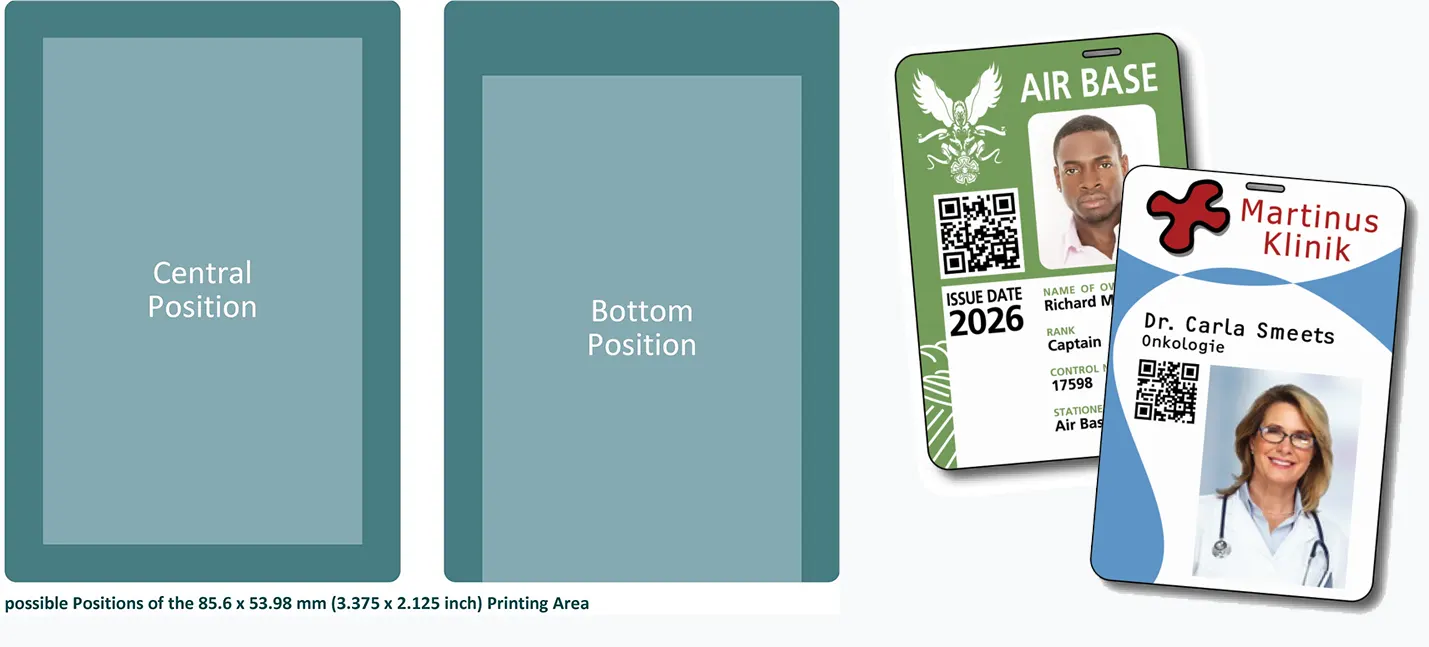

Printing areas:

Drivers

Windows driver -
Windows 11, 10, 8 & 7 (32/64-bit), Windows 2000, XP, Vista:

Download Driver Now

Mac Driver:


Download Mac Driver Now
Whitepaper: How to Choose an Oversized ID Card Printer

Whitepaper: How to Choose an Oversized ID Card Printer

A concise guide to evaluating oversized badge printer options for high-visibility credentials and event use cases.
