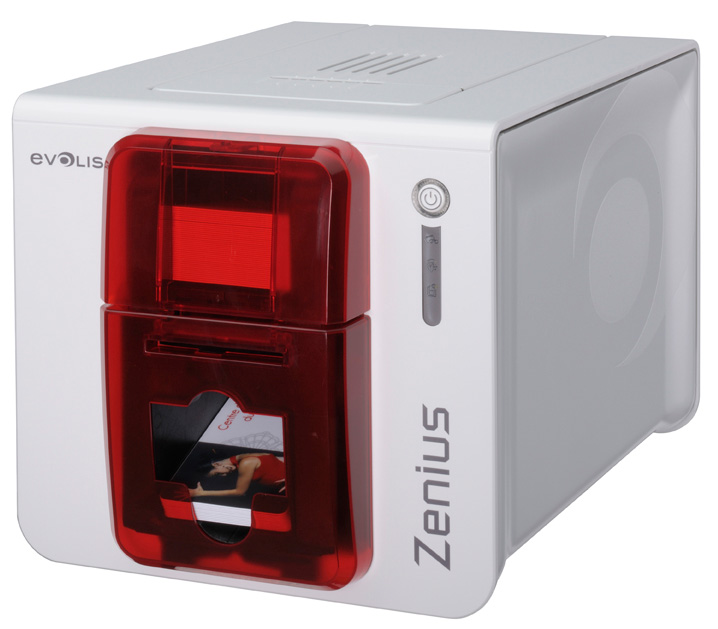

Evolis Zenius ID Card Printer

General printer specifications

• Single-sided printing module, edge-to-edge printing
• Color-dye sublimation and monochrome thermal transfer
• 300 dpi print head (11.8 dots/mm)
• 16 MB of RAM

Printing performances

• Color: from 120 to 150 cards per hour
• Monochrome: from 400 to 500 cards per hour

Card management and specifications

• Choice of automated or manual feeding

Evolis High Trust® ribbons®

Maximize the quality and durability of printed cards, the lifespan of your print head and the overall reliability of your printer!

• Automatic detection and setup
• Ribbon embedded in a cassette for ease of use
• Ribbon saver feature for monochrome printing

Display

• LEDs
• Graphic notifications from the printer (Depending on your Windows version): Empty feeder, cleaning, ”approaching end-of-ribbon” and “end-of-ribbon” warnings

Software

Supplied with the Evolis Premium Suite® for Windows:

• Printer driver
• Evolis Print Center for printer management and setup
• Evolis Printer Manager for two-way notifications (Requires .net 4.0 client profile)
• Supports Windows XP SP2 or later; Vista 32/64, W7 32/64 (For versions prior to Windows XP-SP2, please contact Evolis Services)

Supplied with the eMedia CS Card Designer (30-day free trial to be downloaded from Mediasoft’s website)

Other OS: Mac and Linux: upon request

Warranty

• 2 years (printer and print head)

Feeder capacity - 50 cards (0.76 mm — 30 mil)

Output tray capacity - 20 cards (0.76 mm — 30 mil)

Card thickness - 0.25 to 0.76 mm (10 to 30 mil), calibration via the gauge

Types of cards - all PVC , Composite PVC, PET, ABS* and special varnish* cards

Card format - ISO CR-80 — ISO 7810 (53.98 mm x 85.60 mm — 3.375” x 2.125”)

*Under specific conditions

Ribbon capacity:

• YMCKO
• 100 cards/roll
• KO
• 300 cards/roll

Monochrome ribbon - jump to 1,000 cards per roll (Under specific conditions)

Hologram ribbon - 400 cards/roll
Interfaces

• USB 1.1 (compatible 2.0)
• Ethernet available as an option

Size
(H x L x W) - 195 mm (7.68”) x 205 mm (8.07") x 310 mm (12.2”)

Weight
3.3 kg (7.3 lbs)

Sound (evaluated according to the ISO 7779 Standard) - Sound pressure level, LpAm, bystander position (YMCKO color mode)

When operating - 46dB (A)

In sleep mode - Background noise only<

Safety

• Support for Kensington® lock
• Data encryption for magnetic encoding (for the ‘Expert’ version or above)

Packaging content

• Printer
• CD-ROM with the printer driver and user manual
• Cleaning kit
• USB cable
• Power supply and cords

Options & accessories
Available colors

• Fire Red or Grey Brown
• Ethernet TCP-IP (for the ‘Expert’ version or above)
• Encoding options, than can be combined. Upgrade can be carried out onsite, by adding new modules (for the ‘Expert’ version or above):
• Magnetic stripe encoder, smart card contact station,smart card encoder and contactless smart card encoder. Other encoders available upon request.

Eco-friendly design, certifications and statement of compliance

• Sleep mode and reduced energy consumption
• CE, FCC, IEC, VCCI, CCC, KC
• ErP 2009/125/CE, ENERGY STAR, RoHS

Power

Power supply - 100—240 V AC, 50—60 Hz, 1.8 A

Printer - 24 V DC, 3 A

Environment:

Min/max operating temperature: 15° / 30°C (59° / 86°F)

Humidity: 20% to 65% non-condensing Min/max storage temperature: —5° / +70°C (23° / 158°F)

Storage humidity: 20 to 70% non-condensing

Operating ventilation: Open air<

Resident fonts

• Arial 100, Arial Bold 100
• Bar code: Code 39, code 128, EAN 13, Interleaved 2 of 5
