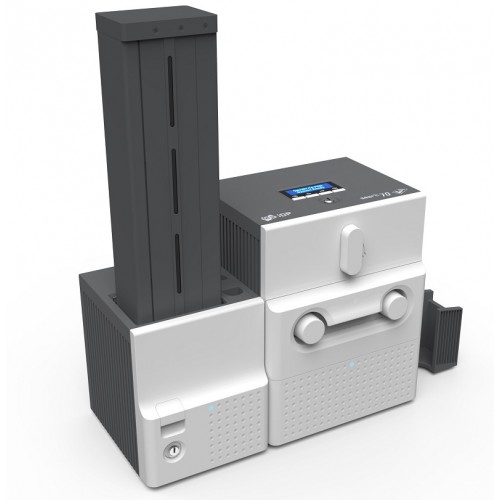

IDP Smart-70 Single or Dual Sided ID Card Printer
Configure IDP Smart-70 Single or Dual Sided ID Card Printer for your ID card program, review available printer setups and options, and add the right package to your quote.
Choose the setup that fits your badge program
Select the printer configuration and any available encoding or upgrade options, then add the selected items to your quote.
SMART-70 Series the large capacity card printer from IDP is ideally suited to users who have large capacity needs, or for end-users who would like to secure their credential media in the securely locked printer. The SMART-70 Series offers a unique modular design that is easily upgraded by the end-user.
Configurations vary from single sided only printing to a fully configured system with dual sided printing, lamination and 500 cards output hopper.
The easily upgradeable: the printer offers a simple no-tool upgrade strategy that any dealer or IT technican would be able to manage in minutes. Saving maintenance time for replacing ribbon and laminating patch : 500 card ribbon and laminating patch are provided to match the capacity of the input hopper.
Each station (printer, encoding station, laminator, flipper, hopper) connects with an alignment plate. Each station has its own power supply and communication cables are provided to connect each station and synchronize their operation.
Printing
- Print Type: Direct Dye-Sublimation
- Print Area: Edge to Edge
- Resolution: 300dpi
Card
- Card Feeding: Automatic
- Card Size: ISO CR80 (54mm x 86mm / 2.12” x 3.38”)
- Card Thickness: 0.38mm (15mil), 1.2mm (47mil)
- Card Type: PVC, Composite PVC, PET
Print Speed
- Monochrome: 3.6 sec./card (1,000 cards/hour)
- YMCKO: 18 sec./card (200 cards/hour), Max. 16 sec./card (225 cards/hour)
- YMCKOK: 24 sec./card (150 cards/hour), Max. 22 sec./card (164 cards/hour)
Capacity
- Input Hopper: 500 cards
- Output Hopper: Stacker : 100 cards / *Optional Output Hopper : 500 cards
System
- Memory: 64MB RAM
- Interface: 2 Line LCD / 4 Buttons / 1 LED Indicator
- Supported Platforms: Microsoft Windows 2000/ 2003/ XP/ Vista/ 7/ 8, Mac OS, Linux
- Communication: USB, Ethernet
- Power Supply: Free voltage (AC 100/ 220V, 50~60Hz)
- Power Consumption: 24V, 2A
- Temperature/Humidity: 15~35&grad;C / 35~70%
Security
- Physical Lock: Ribbon
- S/W: PC authentication, Password authentication
- Station Itself: Kensington Lock
Dimensions
- Millimeter: 240 (W) x 214 (L) x 305 (H)
- Inch: 9.5 (W) x 8.4 (L) x 12 (H)
Weight
- Approx. 6.3 kg/13.9 lbs
Request a free quote for IDP Smart-70 Single or Dual Sided ID Card Printer
Tell Idesco how many badges you print and whether you need dual-sided cards, encoding, lamination, supplies, or support.
