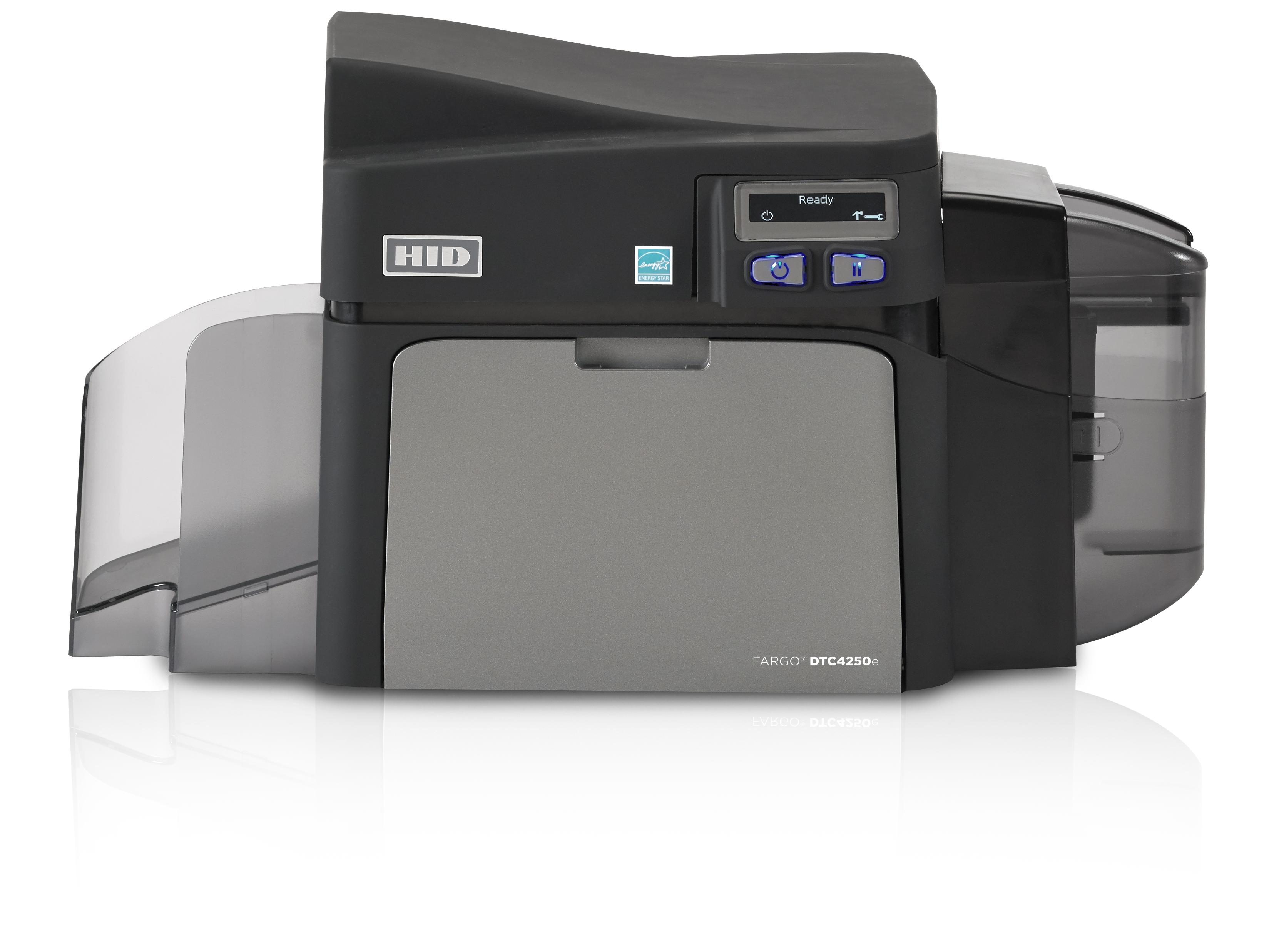

Fargo DTC4250e Single or Dual Sided ID Card Printer
Configure Fargo DTC4250e Single or Dual Sided ID Card Printer for your ID card program, review available printer setups and options, and add the right package to your quote.
Choose the setup that fits your badge program
Select the printer configuration and any available encoding or upgrade options, then add the selected items to your quote.
Medium- to large-sized companies, schools, and government organizations all use the Fargo DTC4250e ID Card Printer for its high-volume output of secure cards and personalized credentials. If you’re looking for a long-term, reliable solution that can withstand everyday use, you need the Fargo DTC4250e ID Card Printer.
From plastic loyalty cards to sophisticated access cards with embedded electronics, you can get professional ID cards with the Fargo DTC4250e ID Card Printer, including encoder. And when your business needs change, the Fargo DTC4250e ID Card Printer can be easily adapted to meet your new needs.
This mid-range professional card printing solution is ideal for:
- Corporate ID
- Transportation
- Health Care
- Universities
- Corrections
- Sports & Leisure
- Schools
- Health Clubs
- Retail & Loyalty
- Casinos
- Manufacturing Plants
- Libraries
- Not-For-Profit/NGOs
Protect your cards from forgery
The Fargo DTC4250e ID Card Printer comes with additional security features that reduce or eliminate the risk that your printed ID cards will be replicated. From a password protected printer that only allows authorized personnel to print cards to data encryption, you can get highly customized cards that are hard to copy.
Optional upgrades for future needs
The Fargo DTC4250e ID Card Printer is both flexible and scalable with a unique modular design that makes it easy to upgrade when your needs change. You can choose dual-sided printing that gives you bar codes or digital signatures on the back and also holographic or fluorescent overlamintes that increase your cards’ security and eliminate the possibility of forgery.
Plenty of options for further functionality
The Fargo DTC4250e ID Card Printer is compatible with other Fargo products so that you can create the system you need for your security requirements. For example, the iCLASS SE embedded encoder allows you to create custom smart cards, and the Assure ID card personalization software and EasyLobby secure visitor management solutions give you access to additional features.
Print Method
Dye-sublimation / resin thermal transfer
Resolution
300 dpi (11.8 dots/mm) continuous tone
Colors
Up to 16.7 million / 256 shades per pixel
Print Ribbon Options
Options include easy-to-use ribbon with disposable ribbon cartridge (EZ) and more economical and eco-friendly refill ribbon for cartridge (ECO).
Both EZ and ECO
- Resin black (standard), 1000 prints
EZ only
- Full-color with resin black and overlay panel, YMCKO, 250 prints
- Full-color half-panel with resin black and overlay panel, YMCKO, 350 prints
- Full-color with two resin black panels and overlay panel, YMCKOK, 200 prints
- Full-color with fluorescing, resin black and overlay panel, YMCFKO, 200 prints
- Full-color with fluorescing, two resin black panels and overlay panel, YMCFKOK, 175 prints
- Resin black and overlay panel, KO, 500 prints
- Dye-sublimation black and overlay panel, BO, 500 prints
- Resin green, blue, red, white, silver, gold, 1000 prints
- Resin silver and gold metallic, 500 prints
Rewrite technology - no ribbon is required
Print Speed
6 seconds per card (K)
8 seconds per card (KO)
16 seconds per card (YMCKO)
Accepted Standard Card Sizes
- CR-80 (3.375? L x 2.125? W / 85.6 mm L x 54 mm W)
- CR-79 adhesive back (3.313? L x 2.063? W / 84.1 mm L x 52.4 mm W)
Print Area
- CR-80 edge-to-edge (3.36? L x 2.11? W / 85.3 mm L x 53.7 mm W)
- CR-79 (3.3? L x 2.04? W / 83.8 mm L x 51.8 mm W)
Accepted Card Thickness
Print only: .009? - .040? / 9 mil - 40 mil / .229 mm - 1.016 mm
Print / lamination: .030? - .040? / 30 mil - 40 mil / .762 mm - 1.02 mm
Accepted Card Types
- PVC or polyester cards with polished PVC finish
- Monochrome resin required for 100% polyester cards
- Optical memory cards with PVC finish
- Rewrite
Input Hopper Card Capacity
Dual-input card hopper (200 cards)
Output Hopper Card Capacity
Up to 100 cards (.030? / .762 mm)
Reject Hopper Card Capacity
Up to 100 cards (.030? / .762 mm) - same-side input / output card hopper or lamination module required
Card Cleaning
Card cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change
Memory
32 MB RAM
Software Drivers
Windows XP / Windows Vista (32 bit & 64 bit) / Server 2003 & 2008 / Windows 7 / Windows 8 (32 bit & 64 bit)
MAC OS X 10.5/10.6/10.7/10.8
Linux
Interface
USB 2.0 and Ethernet with internal print server
Operating Temperature
65° to 80° F / 18° to 27° C
Humidity
20—80% non-condensing
Dimensions
Single-sided printer: 9.8? H x 18.1? W x 9.2? D / 249 mm H x 460 mm W x 234 mm D
Weight
Single-sided printer: 9lbs / 4.1 Kg;
Agency Listings
Safety: UL 60950-2, CSA C22.2 (60950-07), and CE
EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC
Environmental Features
All configurations without a lamination module are ENERGY STAR qualified printers
Supply Voltage
100-240Vac, 50-60Hz, 1.6 Amps max
Supply Frequency
50 Hz / 60 Hz
Warranty
Printer — three years
Printhead — three years, unlimited pass with UltraCard
Options
Single wire Ethernet and USB 2.0 interface for inline printing and encoding (note: single wire Ethernet encoding is only available for iCLASS, MIFARE, and contact smart card encoding)
Dual-sided printing module
Same-side input/output card hopper
Smart card encoding modules (contact/contactless)
Magnetic stripe encoding module
Software
Swift ID embedded badging application
FARGO Workbench diagnostic utility with Color Assist spot-color matching
Display
User friendly, SmartScreen graphical display
Printer Security
Printer access password protected
Request a free quote for Fargo DTC4250e Single or Dual Sided ID Card Printer
Tell Idesco how many badges you print and whether you need dual-sided cards, encoding, lamination, supplies, or support.
