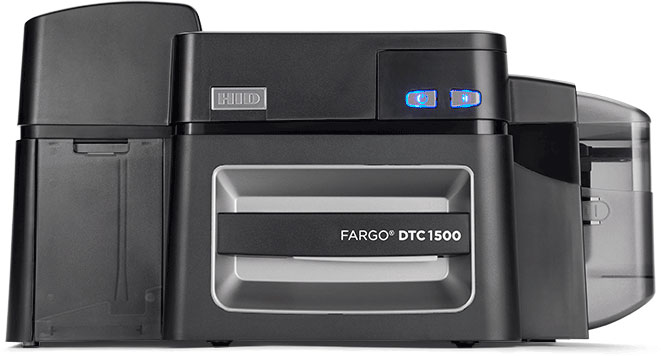

Fargo DTC1500 Single or Dual Sided ID Card Printer
Configure Fargo DTC1500 Single or Dual Sided ID Card Printer for your ID card program, review available printer setups and options, and add the right package to your quote.
Choose the setup that fits your badge program
Select the printer configuration and any available encoding or upgrade options, then add the selected items to your quote.
INNOVATIVE, BUILT-IN SECURITY
Easy-to-implement security features such as resin scramble data protection and custom overlay watermark come standard on every unit.
LOW-COST, HIGH-CAPACITY CONSUMABLES
High-capacity, full and half-panel color ribbons significantly lower cost-per-card and reduce total cost of ownership.
HIGHLY VERSATILE
Powerful printing in a modular, scalable design that simplifies in-field equipment upgrades and migration to higher levels of security.
EARTH FRIENDLY
GreenCircle
Built on 20 years of proven direct-to-card printing expertise, the HID® FARGO® DTC1500 card printer/encoder offers the convenience and lower cost of high-capacity consumables along with a comprehensive feature set – enabling organizations to routinely issue highly secure cards and IDs at a fraction of the cost without sacrificing quality.
Designed for government ID projects, universities and colleges, K-12 schools, healthcare facilities, and small-to-medium businesses, the DTC1500 boasts of distinctive security features ideal for these organizations. A built-in, custom watermark overlay function allows for the application of a customized transparent security image such as a logo, symbol, or text – to be integrated as a permanent watermark within the printed card’s overlay panel – making duplication virtually impossible. The DTC1500 custom watermark provides organizations with a cost-efficient way to significantly increase card security and thwart would-be-counterfeiters without additional investment in holographic overlaminates or foil cards. The DTC1500 also comes equipped with a unique resin scramble data protection feature – rendering used panels unreadable. Standard password protection and AES 256 data encryption provide additional peace of mind.
Beyond robust security, the DTC1500 offers innovative printing features such as resin threshold settings for darker, crisper text and barcodes. What’s more, built-in dual-side printing can be activated with the simple use of an RFID tag making after-purchase upgrades virtually effortless! Due to its modular, scalable design - optional lamination or encoding modules can also be added at any time. Security, lower cost, innovation, and versatility – it all comes standard with the DTC1500.
Print Method
Dye Sublimation / Resin thermal transfer
Resolution
300 dpi (11.8 dots/mm) continuous tone
Colors
Up to 16.7 million / 256 shades per pixel
Print Ribbon Options
Wide array of ECO-friendly, high-capacity print ribbons from K to YMCKOKO. Laminate patch options from full card coverage and half panel polyester overlaminates to off-the-shelf and fully custom holographic overlaminates are all available from HID. Available print ribbons include:
- Full-color with resin black and overlay panel, YMCKO*, 500 prints
- Full-color with two resin black panels and overlay panel, YMCKOK*, 500 prints
- Full-color with two resin black panels, YMCKK*, 500 prints
- Full-color half-panel with resin black and overlay panel, YMCKO*, 850 prints
- Full-color half-panel with two resin black panels and overlay panel, YMCKOK*, 650 prints
- Full-color half-panel with two resin black panels and overlay panels, YMCKOKO*, 500 prints
- Resin black, K*, 3000 prints
Print Speed**
6 seconds per card (K*); 16 seconds per card (YMCKO*); 24 seconds per card (YMCKOK*)
Accepted Standard Card Sizes
CR-80 (3.375?L x 2.125?W / 85.6 mm L x 54 mm W); CR-79 (3.313" L x 2.063" W / 84.1 mm L x 52.4 mm W)
Print Area
CR-80 edge-to-edge (3.36?L x 2.11?W / 85.3 mm L x 53.7 mm W); CR-79 (3.3" L x 2.04" W / 83.8 mm L x 51.8 mm W)
Accepted Card Thickness
..009? - .040? / 9 mil - 40 mil / .229 mm - 1.016 mm
Accepted Card Types
PVC or polyester cards with polished PVC finish; monochrome resin required for 100% polyester cards; optical memory cards with PVC finish; rewrite
Input Hopper Card Capacity
100 cards (.030? / .762 mm)
Output Hopper Card Capacity
y Up to 100 cards. (.030" / .762 mm)
Card Cleaning
g Card cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change
Memory
32 MB RAM
Software Drivers
Windows® 7, 8, 8.1 and 10 (32 bit & 64 bit) / Windows Server 2003, 2008, 2012
Interface
USB 2.0, Standard Ethernet with internal print server (Note: Ethernet optional on BIS-Certified Units)
Operating Temperature
65° to 80°F / 18° to 27°C
Humidity
20–80% non-condensing
Dimensions
Printer: 9.8" H x 18.7" W x 9.2" D / 249 mm H x 475 mm W x 234 mm D
Printer + lam: 18.9" H x 18.7" W x 9.2" D / 480 mm H x 475 mm W x 234 mm D
Weight
Printer: 11 lbs / 5 Kg
Printer + lam: 20 lbs / 9.1 Kg
Agency Listings
Safety: UL 60950-2, CSA C22.2 (60950-07), and CE; EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC
Supply Voltage
100-240Vac, 50-60Hz, 1.6 Amps max
Supply Frequency
50 Hz / 60 Hz
Environmental Features
GreenCircle® Certified card printer (base models only without encoders), refillable supply cartridges (ECO), and rewrite technology - no ribbon required
Warranty
Printer – three years; printhead – three years, unlimited pass with UltraCard®
Encoding Options (HID Encoders)
Supported smart card and magnetic stripe technologies: 125 kHz (HID Prox) reader; 13.56 MHz (iCLASS® Standard / SE / SR / Seos®, MIFARE Classic®, MIFARE Plus®, MIFARE DESFire®, MIFARE DESFire® EV1, ISO 14443 A/B, ISO 15693) read/write encoder; contact smart card encoder reads from and writes to all ISO7816 1/2/3/4 memory and microprocessor smart cards (T=0, T=1) as well as synchronous cards; ISO magnetic stripe encoding, dual high- and low-coercivity, tracks 1, 2 and 3
Options
Single wire Ethernet and USB 2.0 interface for inline printing and encoding are only optional on BIS-Certified Units (note: single wire Ethernet encoding is only available for iCLASS® , MIFARE®, and contact smart card encoding) - Ethernet-enabled printer supports wireless accessory; dual-sided printing module; smart card encoding modules (contact/contactless); magnetic stripe encoding module; printer cleaning kit; secure proprietary consumables system
Software
Swift ID™ embedded badging application, FARGO Workbench™ diagnostic utility with Color Assist™ spot-color matching
Display
Color changing status buttons
Request a free quote for Fargo DTC1500 Single or Dual Sided ID Card Printer
Tell Idesco how many badges you print and whether you need dual-sided cards, encoding, lamination, supplies, or support.
