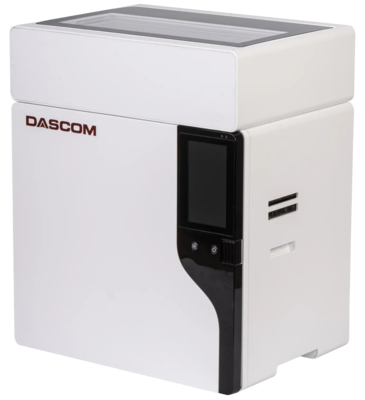

Dascom DC-8600 Retransfer Card Printer
Configure Dascom DC-8600 Retransfer Card Printer for your ID card program, review available printer setups and options, and add the right package to your quote.
Choose the setup that fits your badge program
Select the printer configuration and any available encoding or upgrade options, then add the selected items to your quote.
Stunning 600 DPI Quality
The DASCOM DC-8600 is a retransfer card printer that delivers exceptionally sharp text, detailed graphics, and over-the-edge full-color images—all at an impressive resolution of 600 DPI. Whether you’re printing microtext or high-resolution logos, the DC-8600 ensures every element on your card stands out.
Retransfer Technology for Durability
Unlike direct-to-card (DTC) printers, the DC-8600 uses reverse transfer to first print onto a clear film, which is then fused to the card surface. This extra layer helps protect against wear, tear, and fading. Your cards not only look great but also last longer—even in high-use applications.
Single-Sided Printing Efficiency
This model is designed specifically for single-sided (simplex) printing, making it a perfect choice for organizations that only require printing on one side of the card. For dual-sided solutions, explore other variants in the DC-8600 series.
Flexible Connectivity
To keep your workflow running smoothly, the DC-8600 includes both USB and Ethernet interfaces. Connect directly to a standalone PC via USB, or deploy the printer on a network to let multiple users print from different workstations—ideal for busy offices and secure facilities.
Enhanced Card Security
For added protection, the DC-8600 supports a variety of encoding options, including magnetic stripe, contact smart cards, and contactless RFID cards (depending on configuration). You can easily upgrade your card program to incorporate access control, payment, or other secure functionalities as needed.
Fast and Reliable Performance
At 600 DPI, you can expect a throughput of approximately 20 seconds per full-color card (single-sided). This means faster operations without compromising quality, making it ideal for high-volume card issuance.
Warranty and Support
The DASCOM DC-8600 comes with a 3-year warranty on the printer and a lifetime warranty on the printhead. Register your printer on the DASCOM website to gain access to firmware updates, in-depth user documentation, and responsive customer support.
Ideal Applications for the DC-8600
- Corporate and employee ID badges
- Government or secure access credentials
- Membership or loyalty cards requiring detailed images
- Campus and student IDs
- Payment and banking cards (with appropriate encoders)
Available Options
- Magnetic stripe encoding module
- Contact and contactless smart card encoding
- Cleaning kits and additional retransfer film supplies
- Extended warranty packages
Supported Operating Systems
The DC-8600 works seamlessly with modern Windows® environments, including Windows 7, 8/8.1, 10, 11, and Server 2012/2016/2019/2022, as well as macOS. Installation is straightforward: simply load the official DASCOM drivers, connect via USB or Ethernet, and start printing high-quality cards right away.
Print Method: Retransfer dye-sublimation and resin thermal transfer
Resolution: 600 dpi (23.6 dots/mm)
Colors: Up to 16.7 million for full-color printing, sharp monochrome output
Print Ribbon Options:
- YMCK (Full-color with transfer film)
- Monochrome (Black, metallic, or specialty) ribbons
- YMCKI or YMCKSI ribbons for advanced printing needs
Print Speed:
- Full-color (YMCK): Up to 170 cards per hour (approx. 20 seconds per card)
Accepted Standard Card Sizes:
- CR80 (3.375" L x 2.125" W / 85.6 mm L x 53.98 mm W)
Print Area: Edge-to-edge on CR80 format
Accepted Card Thickness: 0.5 – 1.1 mm (20 – 50 mil), depending on media
Accepted Card Types: PVC, composite PVC/PET, and other ISO ID-1 cards with a glossy surface
Input Hopper Card Capacity: Up to 250 cards (0.030" / 0.76 mm)
Output Hopper Card Capacity: Up to 250 cards (0.030" / 0.76 mm)
Card Cleaning: Uses a dedicated cleaning roller or cleaning kit to maintain optimal printhead and roller conditions
Memory: Typically 32 MB (varies by model/region)
Software Drivers: Compatible with Windows® 7, 8/8.1, 10, 11, Server 2012/2016/2019/2022, and macOS
Interface:
- USB 2.0 (cable included)
- Ethernet (for network printing)
- Optional Wi-Fi
Operating Temperature: 59° to 86° F / 15° to 30° C (recommended)
Humidity: 35–95% non-condensing
Dimensions (approx.): 9.76" H x 13.35" W x 16.06" D / 248 mm H x 339 mm W x 408 mm D
Weight: 29.3 lbs (13.3 kg)
Power Supply: 100–240 Vac, 50–60 Hz (auto-switching)
Warranty: 3-year warranty on the printer and a lifetime warranty on the printhead
Optional Modules & Accessories:
- Magnetic stripe encoding (ISO 7811)
- Smart card encoding (contact or contactless)
- Cleaning kits for routine maintenance
- Customized security or holographic overlays
Included Software: Standard printer drivers; optional DASCOM CardEditor software for basic design and layout
