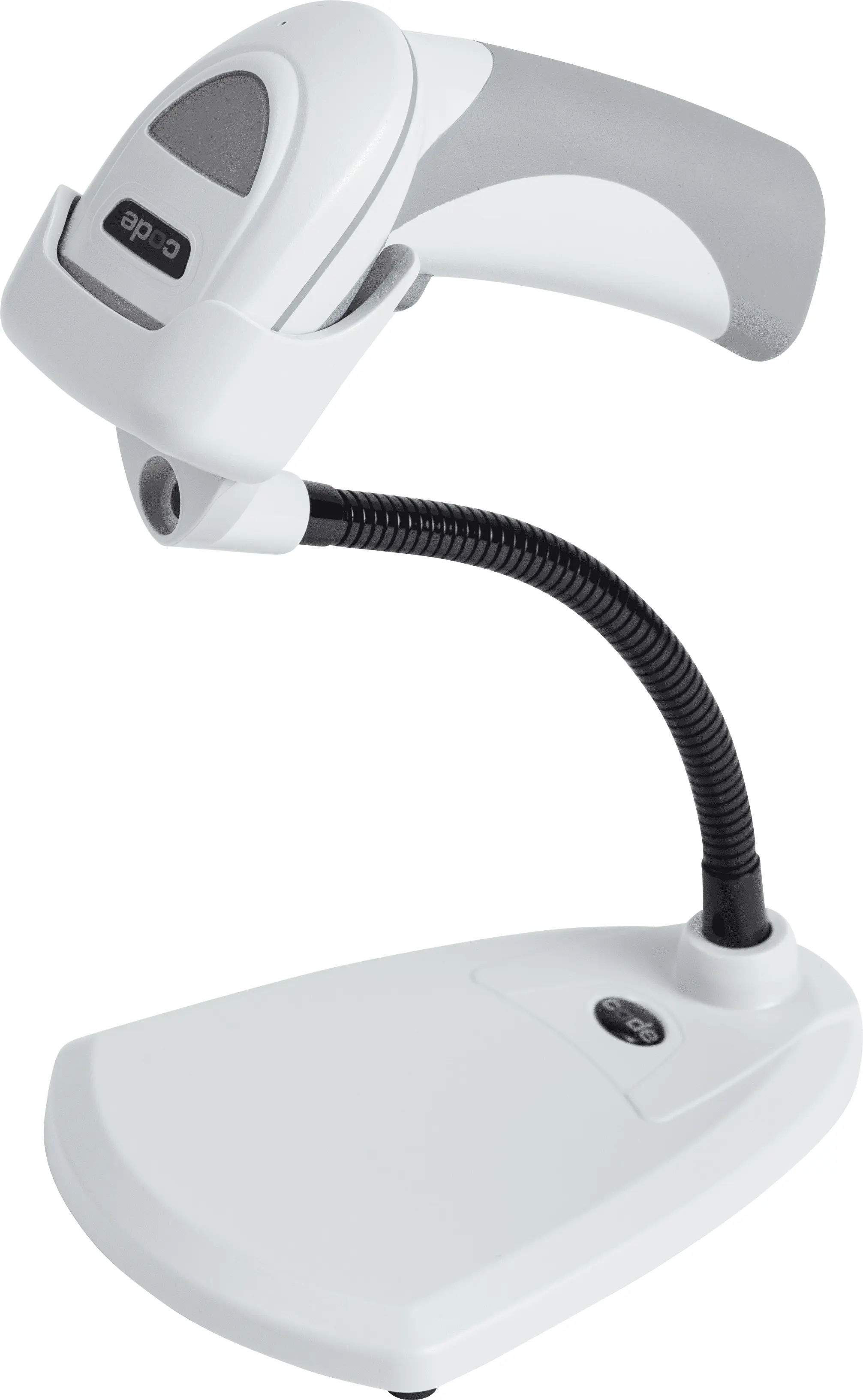

CR1500 Barcode Reader Kit
Choose the configuration, options and quantity that fit your project, then add the selected details to your quote.
brady
Vendor
CR1500-K101-C500
Item number
Configuration
Choose your options
Select the available configuration details, options and quantity. Your selections will be included with the quote request.
Product Highlights
Product Features:
- High-performance scan engine with patented dual-field optics (high density & wide field)
- Fast, reliable decoding of 1D, 2D, and postal barcodes?including tiny or poor-quality codes
- Reads from mobile device screens with patented glare-reduction technology
- Rugged, compact design with IP54 sealing and drop-resistant housing
- Two disinfectant-ready options: Light Gray (CodeShield? Level 3, PVC-free) and Dark Gray (Level 2)
- Healthcare model supports day/night modes to reduce patient disturbance
- Industrial/retail model optimized for laser-etched, high-density, and optional DPM decoding
- Flexible triggering: manual or automatic to fit any workflow
- Easy integration via RS232 and USB 2.0 (HID, Keyboard, Virtual COM)
- JavaScript-powered data formatting and workflow customization
- Compatible with Code?s rapid-disconnect USB & RS232 Affinity? cables; 6-ft USB kit included
Technical details
Specifications:
- Brand Name: Code? Corporation
- Scanner Model: CR1500
- Color Options: Light Gray (CodeShield? Level 3) or Dark Gray (Level 2)
- Ingress Protection Rating: IP54
- Decoding: 1D, 2D, and postal barcodes; high-density/DPM (license optional)
- Optics: Patented dual-field (high density & wide field); glare-reduction technology
- Communication Interfaces: RS232; USB 2.0 (Generic HID, HID Keyboard, Virtual COM Port)
- Power Source: Wired
- Power Requirements: Reader @ 5 VDC (typical < 350 mA; idle 75 mA)
- Cord Length: 6 ft
- Dimensions: 5.2" (H) x 2" (W) x 3" (D)
- Weight: 4.09 oz
- Data Parsing: HIBC; GS1; Driver?s licenses & ID cards (optional license may be required)
- Includes:
- CR1500-K101-C500 ? CR1500 Light Grey Barcode Scanner, 6-ft Straight USB Cable
- CR1500-K101-C500-US2 ? CR1500 Light Grey Barcode Scanner, 6-ft Straight USB Cable, US2 Stand
- CR1500-K201-C500 ? CR1500 Dark Grey Barcode Scanner, 6-ft Straight USB Cable
- CR1500-K201-C500-US3 ? CR1500 Dark Grey Barcode Scanner, 6-ft Straight USB Cable, US3 Stand
- Warranty (North America): 5 Years
