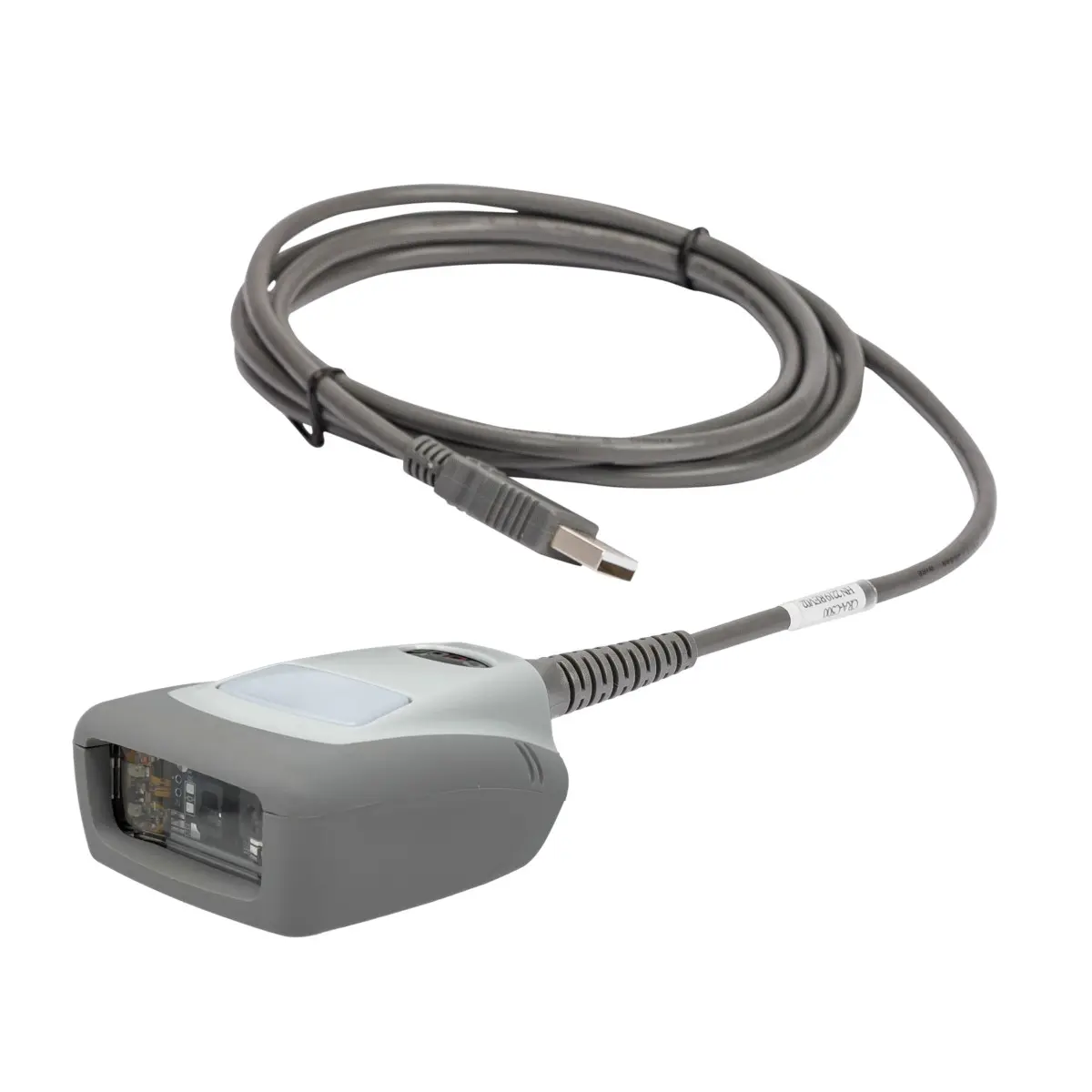

CR1100 Barcode Reader Kit

Choose the configuration, options and quantity that fit your project, then add the selected details to your quote.

brady Vendor

CR1100-K101-C500 Item number

Choose Options & Add to Quote View Brochure

Configuration

Choose your options

Select the available configuration details, options and quantity. Your selections will be included with the quote request.

Product Highlights

Patented dual-field optics (high density & wide field) for tiny 2D and wide 1D codes
High-speed, omnidirectional decoding of 1D & 2D barcodes?even from mobile screens
Compact, space-saving design with remarkably low power consumption
Handheld or in-stand presentation mode for hands-free operation
Flexible triggering: manual, automatic, continuous scan, or motion detection
Patented glare-reduction technology for shiny/reflective surfaces
Threaded brass inserts for easy fixed-mount and OEM installations
JavaScript-powered data editing for advanced parsing and workflow logic
Visual, audible, and haptic feedback customization
Easy integration via USB 2.0 (HID/Keyboard/Virtual COM) and RS232; compatible with Affinity? rapid-disconnect cables

Technical details

Brand Name: Code? Corporation
Scanner Model: CR1100
Color: Light Gray or Dark Gray
Basic Function: Barcode Scanner
Connectivity Options: Cabled
Communication Interfaces: RS232; USB 2.0 (Generic HID, HID Keyboard, Virtual COM Port)
Optics: Patented dual-field (high density & wide field) with omnidirectional reading
Advanced Data Editing: JavaScript
Data Parsing: HIBC; GS1; Driver?s licenses & ID cards (optional license may be required)
Cord Length: 6 ft
Dimensions: 2.5" (H) x 2.5" (W) x 0.75" (D)
Weight: 1.9 oz
Memory: 1 MB NOR Flash; 16 MB RAM
Power Source: USB
Power Requirements: Reader @ 5 VDC?typical < 300 mA; idle < 1 mA
Includes:
- CR1100-K101-C500 ? CR1100 Light Grey Barcode Scanner, 6-ft Straight USB Cable
- CR1100-K101-C500-US2 ? CR1100 Light Grey Barcode Scanner, 6-ft Straight USB Cable, US2 Stand
- CR1100-K201-C500 ? CR1100 Dark Grey Barcode Scanner, 6-ft Straight USB Cable
- CR1100-K201-C500-US3 ? CR1100 Dark Grey Barcode Scanner, 6-ft Straight USB Cable, US3 Stand
Industry: Healthcare / Industrial
Application: Asset Tracking; General Identification
Battery Type: No Battery
Compatible Cables: Code rapid-disconnect USB & RS232 Affinity? cables
Warranty (North America): 2 Years
