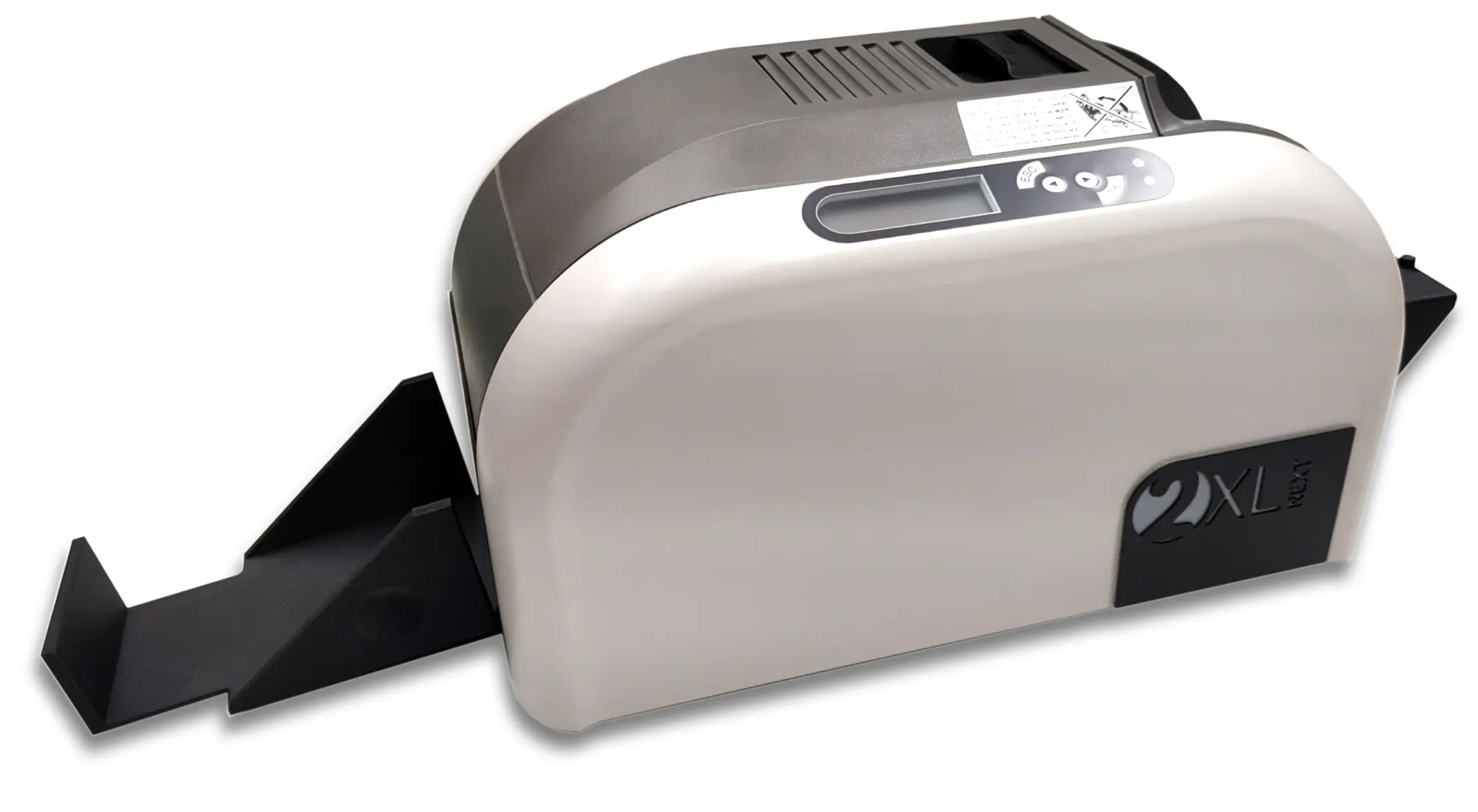

2XLnext Accreditation Printer for Large Sized Plastic Badges
Configure 2XLnext Accreditation Printer for Large Sized Plastic Badges for your ID card program, review available printer setups and options, and add the right package to your quote.
The 2XLnext is a next-generation oversized card printer engineered for professional event and accreditation environments. Delivering fast, reliable badge production, it prints up to 180 full-color cards per hour and up to 1,400 cards per hour in monochrome.
The printer supports two card sizes: 124 × 88 mm (4.88 × 3.46 in) and 140 × 88 mm (5.5 × 3.46 in). The printable area corresponds to the standard CR80 format, making preprinted cards the recommended solution for achieving optimal visual quality.
The 2XLnext integrates a control display for clear printer status feedback and supports tool-free “drop-in” printhead replacement, significantly reducing downtime. These features simplify daily operation and ensure accurate print positioning.
Optional contactless encoding (Mifare) expands the printer’s capabilities for access control, accreditation and secure event management. A 2-year warranty provides long-term operational assurance.
Printing Technology: Dye-Sublimation / Thermal Printing
Interface: USB 1.1 (compatible with USB 2.0)
Ribbons:
- Full color YMCKO for 400 cards
- Monochrome ribbons for 2,000 prints each, available in Black (K), White, Blue, Red, Green, Silver, and Gold
Printing Resolution: 300 dpi
Printing Speed:
- Full color (YMCKO): up to 180 cards per hour
- Monochrome: up to 1,400 cards per hour
Card Sizes: 124 × 88 mm (4.88 × 3.46 in) or 140 × 88 mm (5.5 × 3.46 in)
Card Thickness: 0.25 mm to 1.0 mm (10–40 mil)
Card Feeder: 100 cards (0.76 mm / 30 mil)
Output Hopper: 50 cards (0.76 mm / 30 mil)
Drivers: Windows 7–11, Mac OS 10.5–10.8, Linux
Encoding Options: Contactless RFID encoder: Mifare
Additional Options: Ethernet interface
Dimensions (Printer only): 197.8 mm (W) × 354 mm (L) × 204 mm (H), 7.79 in × 13.94 in × 8.03 in
Dimensions (Printer boxed): 290 mm (W) × 500 mm (L) × 300 mm (H), 11.42 in × 19.69 in × 11.81 in
Weight: Printer: 4.6 kg / 10.15 lb (without options); Printer boxed: 6.3 kg / 13.89 lb (without options)
Warranty: 2 years
